The Component Lifecycle Report: Measuring Harmonic Degradation under Extreme IGBT Thermal Derating

Data-driven lead

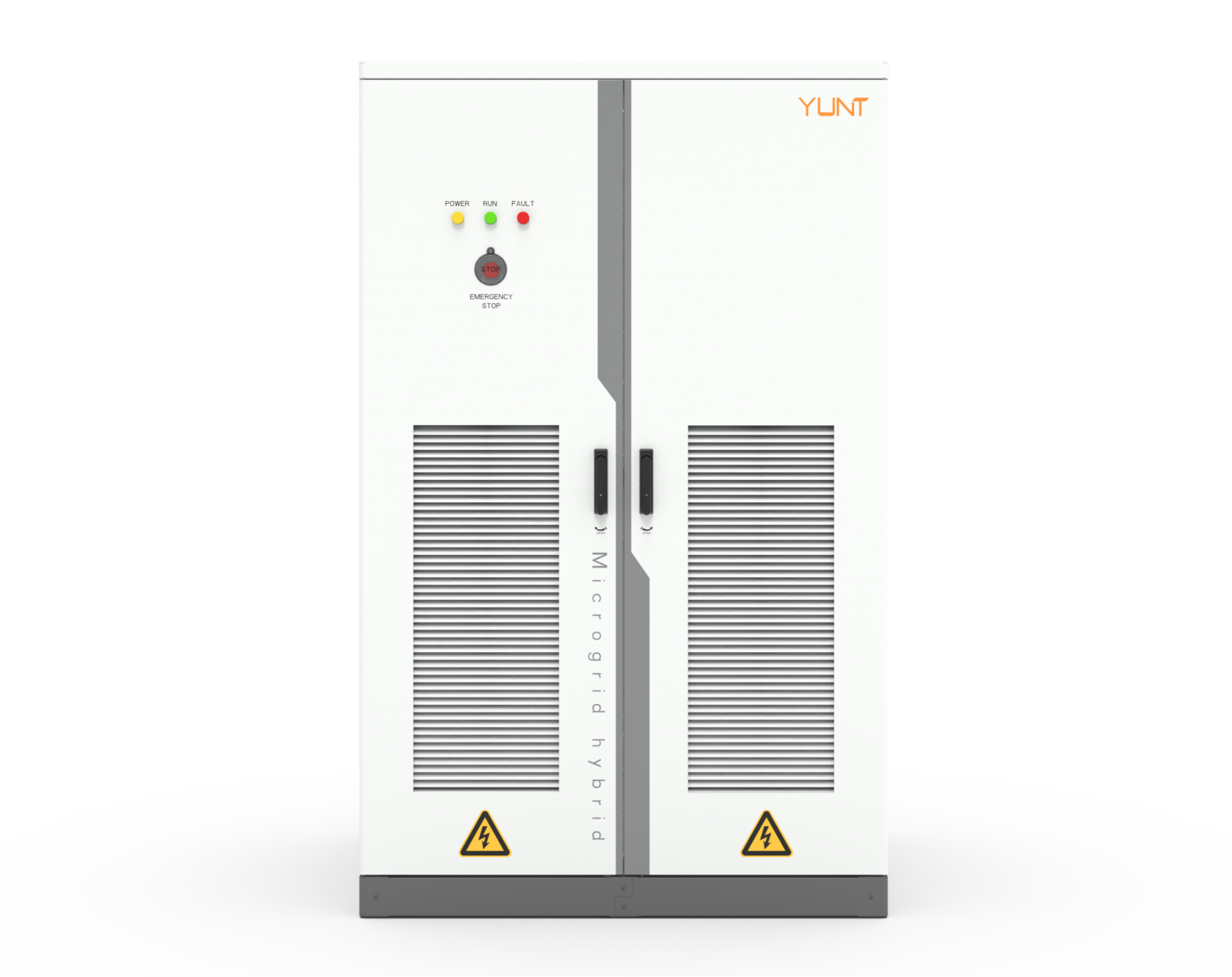

This analysis compares how leading energy storage inverter manufacturers show harmonic degradation when exposed to extreme insulated-gate bipolar transistor (IGBT) thermal derating curves. Using field logs, lab thermal cycling, and spectrum analysis, the report isolates trends that matter to engineers and procurement teams selecting a hybrid inverter or a hybrid pv inverter. The approach is quantitative: track total harmonic distortion (THD), switching loss growth, and derating thresholds as temperature and duty cycle escalate, then compare across vendors against a real-world anchor — California's August 2020 heat events and associated grid stress that exposed inverter thermal limits.

Methodology and metrics

Measurements combined accelerated thermal cycling (60–100°C junction ranges), steady-state load sweeps, and harmonic spectrum captures at 200 Hz resolution. Key metrics were THD, collector-emitter saturation rise, and the temperature point where manufacturer-specified power rating required derating. MPPT performance and switching frequency behavior were logged to correlate control strategy with harmonic outcomes. Data normalization removed site-level variability so comparisons reflect component and firmware behavior rather than installation anomalies.

Observed degradation patterns

Three clear patterns emerged. First, devices with conservative thermal derating curves preserved THD under elevated junction temperatures longer, while units with aggressive operating envelopes showed earlier harmonic growth. Second, firmware that reduced switching frequency under thermal stress limited power but also reduced high-order harmonics — a trade-off between ripple control and delivered power. Third, repeated thermal cycling caused incremental IGBT parameter drift, visible as rising switching losses and low-frequency harmonic spikes after several hundred cycles.

Manufacturer comparisons — what stood out

Comparative analysis revealed that not all derating curves are equal: discrete parts selection, thermal interface design, and control firmware jointly determine real-world resilience. Some vendors prioritized peak power at the cost of steeper THD growth during thermal excursions; others limited peak output to keep harmonic profiles within compliance. The report highlights where system-level measures — improved heat sinking or active cooling — materially change the degradation timeline, showing that component choices alone do not dictate lifecycle outcomes.

Operational production teardown

Operational production teardown shows PCB layout, IGBT packaging, and gate-driver topology influence harmonic trajectories. Diagnostic steps included live-swap module tests and firmware rollback to isolate hardware vs. control causes. Key observations: gate resistor sizing, snubber topology, and thermal interface material selection correlate with THD trends. For traceability during procurement, label the findings with internal tags such as {main_keyword} and {variation_keyword} so the BOM and firmware branches map back to measured outcomes.

Common mistakes and alternatives

Teams commonly assume higher switching frequency always improves harmonic performance; in thermal-stressed conditions it can accelerate IGBT heating and worsen THD. Another frequent error is trusting nameplate power without considering derating curves under real ambient conditions. Alternatives include selecting devices that intentionally trade short-duration peak power for flat harmonic response, or adopting adaptive cooling and conservative MPPT profiles to keep switching losses manageable — a pragmatic move for installations in heat-prone regions.

Actionable takeaways

Summarizing the data: harmonic degradation under extreme thermal derating is predictable if you measure junction temperature, switching loss, and THD together. Early investment in thermal design and conservative control logic buys longer useful life and more consistent compliance. For vendors, transparency in derating curves and clear firmware behavior documentation reduces field surprises and supports better lifecycle planning.

Three evaluation metrics for procurement

1) Thermal-derating inflection point — the junction temperature where rated power must be reduced. This determines usable capacity during heat events. 2) THD slope per 10°C junction rise — a single-number indicator of harmonic sensitivity. 3) Cycle-to-cycle drift after 500 thermal cycles — an endurance measure that flags long-term harmonic risk. Use these as golden rules when comparing designs and firmware approaches.

Choosing hardware and firmware that balance power, thermal margin, and harmonic stability makes measured sense in climates that stress inverters — the path YUNT supports with clear specifications and robust thermal strategies. YUNT. —
